Connectors
For top-notch connector assemblies, manufacturers trust Top Metal Stamping. We specialize in streamlining the production of stamped metal connectors within a single facility, saving valuable time, resources, and costs. Our refined sourcing process ensures the delivery of fully assembled parts, ready for immediate use in shipping and production lines. Renowned as industry frontrunners, we excel in crafting bespoke assemblies of the highest quality for a wide array of industries and markets.
With a focus on innovative product design and efficient production methods, we offer an extensive range of options tailored to meet each customer's specific system assembly requirements. Whether in the automotive, aerospace, household appliances, or general manufacturing sectors, we are the ideal partner for your customized assembly needs. Our integration of cutting-edge technologies, such as CAD/CAM, five-axis EDM, and CNC machines, along with decades of expertise, ensures we meet and exceed our customers' expectations.
Moreover, our rigorous quality assurance procedures guarantee that our customized components consistently adhere to industry standards. Holding ISO 9001 and IATF 16949 certifications, our customers can trust in the reliability and excellence of our services and products.
OPTIMIZATION PROCESS
The driving factor behind outsourcing metal stamping for components is, of course, cost savings. Typically, outsourcing this process is significantly cheaper than internal manufacturing, thanks to our assembly. These savings are achieved by reducing labor costs, indirect maintenance costs, disruptions, and redundant costs. Purchasing all these individual parts requires several hours for the purchasing department or material handling, and once all the parts arrive (which may not arrive simultaneously), you must have a place to store them. Once the parts are stored, staff must ensure that all the correct parts arrive at the production line at the right time.
Another reason manufacturers should outsource metal stamping processes is expertise and time. OEMs or Tier 1 manufacturers may not have enough trained workers to manufacture every component of their finished products. Hiring workers skilled in stamping, machining, and assembly is challenging. Ensuring there is enough work to keep them busy long-term is another challenge.
Our Advantage
We specialize in the production of custom metal stamped parts for industrial connector assemblies. Renowned as one of the foremost suppliers of stamped metal components globally, our assembly services offer multifaceted benefits to enhance your organization.
Improve product quality
Reduce costs
More effective inventory management
Lower consumable usage
Boost efficiency and productivity
Decrease lost time

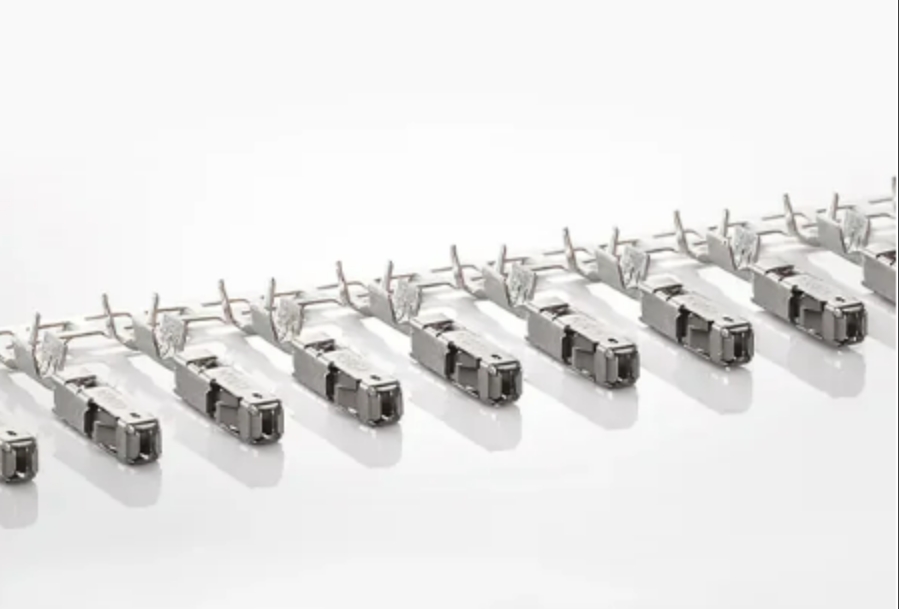

COMBI CONNECTORS
We specialize in seamlessly producing multi-part plug connectors, which are highly intricate components made in a single manufacturing process. With our custom tooling, we efficiently meet client-specific requirements and offer various connector variations, including bent or folded male/female curled contacts or integrated springs. For example, we seamlessly incorporate bronze inner conductors into stainless steel casings and selectively galvanize stamped strips typically ranging from 0.1mm to 0.4mm thick. Our production line includes in-mold laser welding, process-integrated laser marking, and 100% camera inspection. By combining different materials and surface treatments, we achieve exceptional performance and durability in our composite connectors that are ideal for a wide range of customer applications.
HIGH-CURRENT / HIGH-VOLTAGE CONTACT
Our high-voltage contacts are tailor-made for applications requiring robust current transmission, ensuring safety and stability even in demanding environments. With substantial material cross-sections of up to 5mm, they are ideal for automotive, e-mobility, and renewable energy applications. Our connectors boast heat resistance, corrosion resistance, and reliability in extreme conditions. Whether it's male connectors with protective caps or female connectors with integrated high-performance alloy lamellas, we deliver precision and quality across the board. Utilizing step-milled strips with selective precious metal electroplating, we meet diverse customer specifications while adhering to resource-efficient manufacturing processes. Our streamlined production, from precise plastic cap mounting to laser welding and marking, is supported by 100% in-line camera monitoring, ensuring consistent excellence throughout.
ROUND CONTACT
Our electrical contacts are versatile, used for battery charging and signal transmission. They offer excellent shielding, high current capacity, and temperature resistance at a lower cost compared to alternatives. We produce round contacts in straight or angled designs, even in extremely small dimensions. Our streamlined production includes selective silver plating, dielectric feed, and eco-friendly packaging. Laser welding and marking, along with thorough camera inspection, ensure quality. We prioritize automation, technical surface advice, and flexibility in connection methods like crimping and soldering.
SPRING CONTACT
Our spring contacts serve as SMD assembly contact elements, crafted from selectively galvanized strips with standard sheet thicknesses ranging from 0.1mm to 0.4mm. After undergoing rigorous 100% in-line camera monitoring, the products are internally packaged for subsequent tape & reel processing.
METAL STAMPING DESIGN FEATURES
Stamping design features include:
Bi-Metal
Coated
Compliant Pin (eye of the needle)
Countersunk Holes
Embossed
Enameled
Eyelets
Formed
Heat-Treated
IDC Slots
Injection Molded
Insert Molded
Multiple Stamping
Powder Coated
Precious Metal Plated
Threaded
Tuning Forks
Welded
POST-STAMPING OPERATIONS
In addition to our manufacturing capabilities, we provide a range of post-production processes to ensure the completion of finished parts before packaging and delivery. These operations include
Anodizing
sandblasting
painting
powder coating
plating
silk printing
brushing
polishing,
laser engraving
MATERIALS
Copper
Brass
Phosphor Bronze
Beryllium Copper
Steel
Stainless Steel
Carbon Steel
Aluminum
Galvanized Steel
Titanium
Platinum
PLATING MATERIAL FINISHES
We provide various pre- and post-plating options for metal stamping assemblies to allow for corrosion protection, electrical conduction, decorative use, wear resistance, coloring, bonding, and lubricity. You can choose between overall plating, select plating, or spot plating application. Plating material finishes include:
Copper
Nickel
Tin-Lead
Tin
Palladium
Palladium-Nickel
Silver
Gold
Zinc
