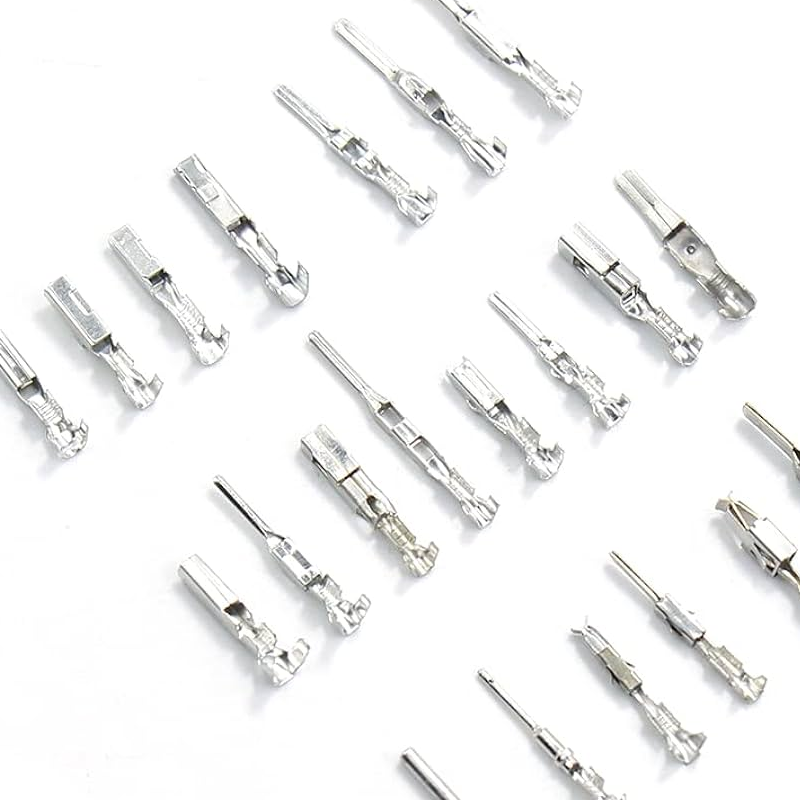

Precision Metal Wire Connectors for Automotive Components

Description:

Custom Metal Wire Connectors for Automotive Applications are critical for ensuring reliable and high-performance electrical connections within vehicles. Our company specializes in the precision design and manufacturing of custom wire connectors, crafted to meet the rigorous demands of the automotive industry. Leveraging advanced manufacturing techniques such as high-speed progressive die stamping and automated crimping, we produce connectors that deliver exceptional electrical conductivity, long-term durability, and robust resistance to heat, vibration, and environmental stress. By focusing on superior craftsmanship and cutting-edge technology, we ensure that our automotive wire connectors are engineered for reliability, providing a secure electrical connection that enhances the overall efficiency and performance of automotive electrical systems. Whether for power, data, or signal transmission, our connectors offer a comprehensive solution for all automotive wiring needs.

Details:

Surface Treatment Options

1. Nickel Plating

This process involves the deposition of a thin layer of nickel onto metal components, providing improved corrosion resistance, increased durability, and a smooth, polished finish.

2. Galvanization

Galvanization applies a protective zinc coating to steel or iron to safeguard against rust and corrosion. This can be achieved through hot-dip or electrogalvanizing methods, offering long-lasting protection in harsh environments.

3. Chrome Plating

Chrome plating applies a layer of chromium to metal surfaces, enhancing resistance to wear, corrosion, and oxidation. This process also provides a high-gloss finish, improving the aesthetic and functional properties of the part.

Production Process for Custom Wire Connectors:

1. Material Selection

The initial step involves selecting the ideal material for the wire connector, such as copper, stainless steel, or aluminum, based on the specific requirements for conductivity, corrosion resistance, and durability. The chosen material must ensure optimal electrical performance and long-lasting reliability.

2. Blanking

In this phase, the raw material is cut into flat sheets or blanks using a precision stamping press. The dimensions and shape of the blanks are determined by the connector’s design specifications, setting the foundation for the subsequent forming processes.

3. Progressive Die Stamping

This process utilizes progressive dies within a high-speed stamping press to incrementally shape the blank into the desired connector form. Multiple operations, including cutting, bending, and forming, are carried out in a single press cycle to achieve the precise geometry of the connector.

4. Forming and Shaping

Following the stamping process, the connector undergoes additional forming processes. This step involves bending and shaping the metal to its final design, such as forming the contact points or terminal connections necessary for the connector’s function.

5. Surface Treatment

Once the connector is shaped, surface treatments like electroplating are applied to enhance electrical conductivity, prevent corrosion, and improve overall durability. Common surface finishes include gold, nickel, or tin plating, each selected for its specific performance benefits.

6. Assembly (If Applicable)

In certain cases, wire connectors are further assembled with additional components such as insulation sleeves or terminal fittings. Automated assembly systems ensure that connectors meet the final functional and design specifications for reliable performance.

7. Testing and Quality Control

Comprehensive testing is performed to verify the connectors meet stringent performance and quality standards. This may include electrical conductivity testing, dimensional inspections, and environmental durability tests like salt spray or thermal cycling to ensure reliability under diverse conditions.

8. Packaging and Shipping

After passing all quality control checks, the connectors are carefully packaged, often on reels or in bulk, to protect them during transit. The packaging ensures the connectors are well-preserved and ready for immediate use or further assembly at their destination.

Factory Overview:

Our team of experienced engineers and technicians collaborates seamlessly to ensure that every product meets strict tolerances and is finished to the highest standards of quality. Certified to ISO 9001, we rigorously maintain quality control at every stage of the manufacturing process.

This advanced facility is built to serve a wide range of industries, allowing us to meet the most demanding specifications for precision metal components. Whether you require automotive connectors, electronic parts, or customized metal solutions, our factory is fully equipped to deliver top-tier products, on time, and to your exact requirements.
